PC17R-5

The PC17R-5 is an outstanding all-round machine with impressive stability and easy transportability. Even when fully equipped with a quick coupler and three buckets, it weighs in at under 2.5 tonnes, trailer included. With the PC17R-5, you’ll experience an intuitive workspace, exceptional lifting capacity, a spacious, comfortable cabin, and newly designed tracks that smoothly handle any surface.

ENGINE POWER	11.8 kW / 15.8 HP @ 2600 rpm
OPERATING WEIGHT	PC17R-5: 1755 – 1835 kg PC20R-5: 1985 – 2040 kg
BUCKET CAPACITY	PC17R-5: 0.022 – 0.028 m³ PC20R-5: 0.020 – 0.030 m³

High versatility, low fuel consumption and safe performance in tight spaces

Powerful and Environmentally Friendly

Newly developed for the EU marke
Low-consumption EU Stage V engine
Highest stability and lifting capacity thanks to new body and counterweight design
Increased working capacity due to top-mounted boom cylinder (PC20R-5)

Total versatility

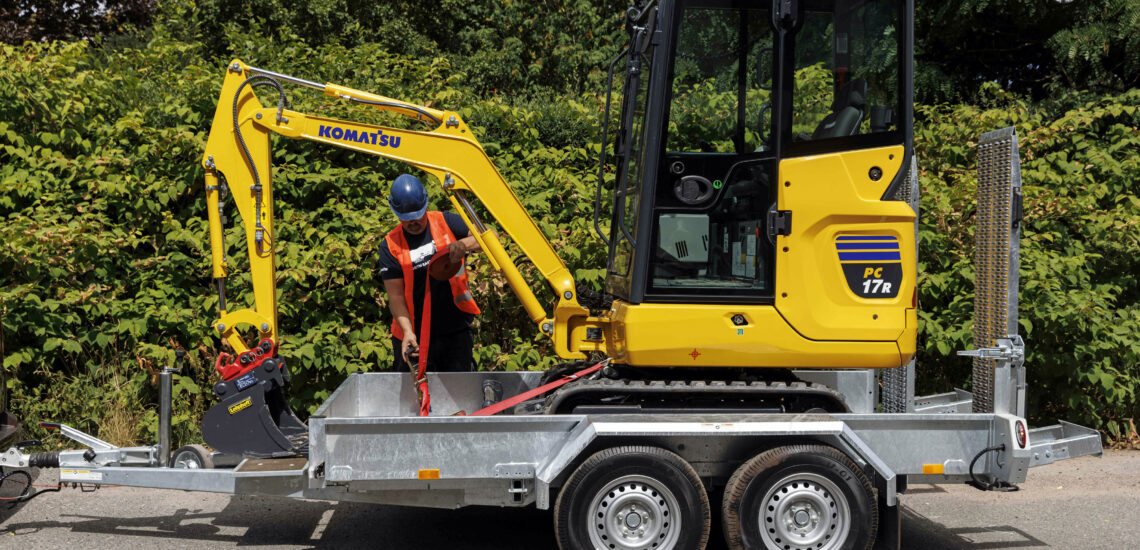

Designed for easy transportation on 2.5 tonnes GVW trailer (PC17R-5)
Lehnhoff Powertilt available as factory fit (PC20R-5)
3rd auxiliary circuit for hydraulic powertilt and 4th line for hydraulic quick-coupler single effect (PC20R-5) (option)
Hydraulic quick coupler line (PC20R-5) (option)
Proportional control for attachments (option)
Variable gauge undercarriage as standard

First-Class Comfort

Newly designed cab
Grammer adjustable suspension seat (option)
Improved operator convenience
Low vibration levels with short pitch rubber shoes

Safety First

Dual lock system for PPC controls
Secondary engine shutdown switch
Seat belt caution indicator
Lifting eyes on cabin roof and tie down points on upper structure
LED working lights (option)

Easy Maintenance

Improved filtration
Easy maintenance access direct from ground level
Fully opening engine door and side cover

KOMTRAX

Komatsu Wireless Monitoring System
4G mobile communications
Increased operational data and reports

Excellent serviceability
Just open two doors for a quick access to daily inspection points and the side-by-side coolers. For major service tasks, the cab floor cover is easily removable, offering convienient access directly from ground level. The fuel filler is located low for refueling in a safe and easy-to-reach position. A large fuel filter and fuel pre-filter with water separator protect the engine. High durability bushings and a 500 hours engine oil change interval further lower operating costs.

Optimal jobsite safety
For increased jobsite safety, the PC17/20R-5 includes a dual lock lever neutral detection system for travel and work equipment levers, along with a seat belt caution indicator and a secondary engine shutdown switch.
