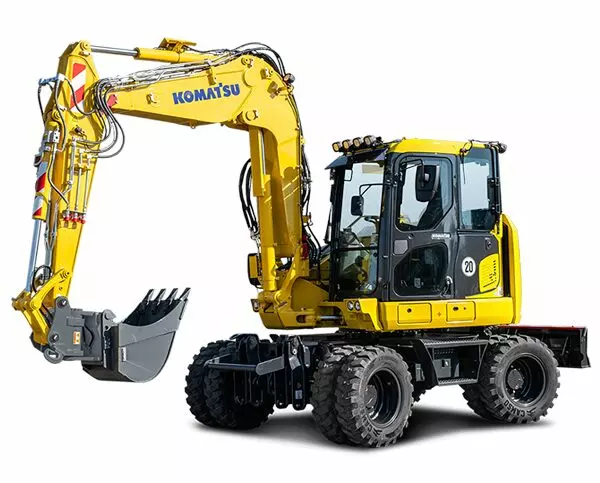

PW98MR-11

Wheeled excavators are designed for quick movement across and between job sites. To enhance mobility, the PW98MR-11 is equipped with an upgraded driveline, enabling faster travel and improved uphill driving speeds. Its oscillating front axle, which can be manually locked via a dashboard switch, enhances performance on slopes. The environmentally friendly EU Stage V engine eliminates the need for an SCR aftertreatment system.

In addition to its class-leading compact size, the PW98MR-11 offers exceptional lifting capabilities. Its blend of power, maneuverability, and precision makes it the top choice for heavy-duty lifting, excavating in tight spaces, road construction, and sewer work.

ENGINE POWER	50.7 kW / 68.0 HP @ 1850 rpm
OPERATING WEIGHT	10090 – 10760 kg
BUCKET CAPACITY	max. 0.282 m³

High versatility, low fuel consumption and safe performance in tight spaces

Powerful and Environmentally Friendly

Low consumption EU Stage V engine
Integrated Diesel Particulate Filter (DPF) with 6000 SMR cleaning interval
6 selectable working modes
Viscous engine fan clutch
Komatsu fuel-saving technology

Total versatility

4-wheel steering enabling 3 steering modes
Excellent mobility in confined work spaces
Innovative two-piece boom design
Lehnhoff Powertilt available as factory fit
Komatsu Integrated Attachment Control (KIAC) (option)
100% differential lock for better traction

First-Class Comfort

Spacious and comfortable cab
Proportional control on joystick for auxiliary circuits
Multifunction monitor with high resolution 7” LCD color display
Attachment changeover via monitor

Safety First

LED working lights (standard)
Rear- and side-view camera system
Protrusion over tyres just 310 mm
Neutral position detection system
Emergency engine stop switch
Seat belt caution indicator

Easy Maintenance

Extended maintenance information displayed on the monitor
Large access doors for maintenance
Blade/stabiliser cylinders with integrated check valve

KOMTRAX

Komatsu Wireless Monitoring System
Integrated communication antenna
4G mobile communications
Increased operational data and reports

Excellent serviceability
Komatsu designed the PW98MR-11 with an easy access to all service points. Routine maintenance and servicing are less likely to be skipped, which can mean a reduction of costly downtime later on.

Long-life oil filters
The Komatsu Genuine hydraulic oil filter uses high-performance filtering material for long replacement intervals, which significantly reduces maintenance costs.

Easy access
The large doors and engine hood give convenient access to all daily service points. Filters are centralised and required service intervals are longer to keep machine downtime to a minimum. The radiator, aftercooler and oil cooler are made of aluminium to improve their efficiency and are mounted in parallel for quicker cleaning.

Electric refuelling pump
Standard equipment on all PW98MR-11 includes an automatic shut-off fuelling pump that allows easy refuelling from a barrel.
