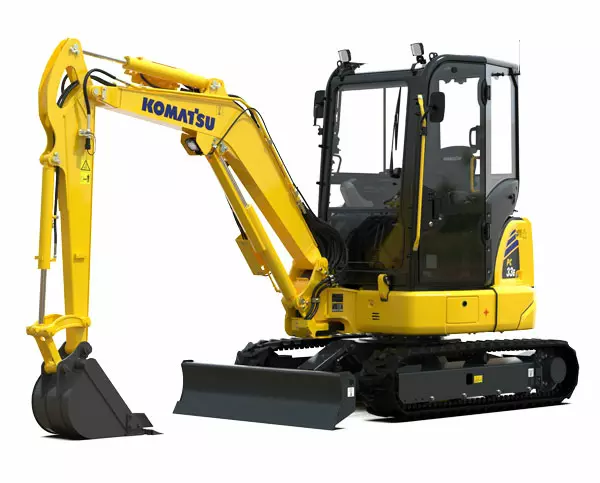

PC33E-6

In response to growing concerns about global climate change, Komatsu is leveraging its century of knowledge and experience to develop solutions that drive the construction industry toward carbon neutrality. The Komatsu PC33E-6 is a key innovation in this effort, featuring a powerful electric system, exceptional operator comfort, and versatile performance.

ENGINE POWER	17.4 kW
OPERATING WEIGHT	3620 kg
BUCKET CAPACITY	0,03 – 0,10 m³

INCREASED FUEL EFFICIENCY AND ENVIRONMENTAL PERFORMANCE

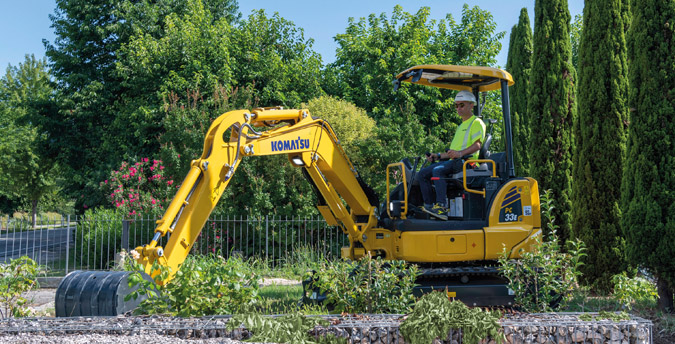

Environmentally Friendly

Zero local emissions
Optimal for indoor use or to work outside of standard working hours
Participate in low-carbon projects
Support customers’ environmental obligations
Significantly lower noise and vibration levels (vs. PC30MR-5)
CO2 reduction equivalent of its own weight (vs. PC30MR-5 over 1 year)

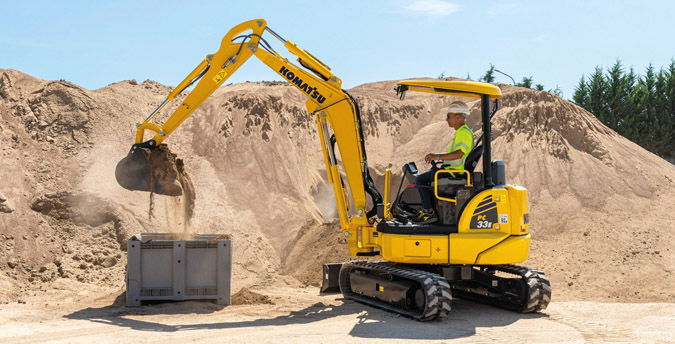

Total versatility

Off-board 400 V fast charger
Proportional control for attachments
Adjustable attachment oil flow (option)
Possibility to use market compatible hydraulic attachments

First-Class Comfort

Air-suspended operator seat
Multi-function monitor with redesigned interface for electric excavators
Charging status information at a glance
Machine controls are same as Internal Combustion Engine machines (ICE) and offer familiar working behaviour

Safety First

Heavy-duty, protected electric components
High-safety LFP lithium battery design
ROPS (ISO 3471) / OPG (ISO 10262) level 1 canopy
LED working lamps
Dual lock system for PPC controls through neutral position detection
Secondary engine shutdown switch
Seat belt caution indicator

Easy Maintenance

Air cooled maintenance-free electric motor and inverter
Reduced daily check and periodical maintenance items
Komatsu E-support programme
New electric powertrain components with a 5 years warranty
Tilt-up floor for easier service access

KOMTRAX

Komatsu Wireless Monitoring System
4G mobile communications
• Includes battery status, charging, power consuption information

Powerful electric system

Electric Komatsu powertrain
17.4 kW Komatsu electric motor
35 kWh Komatsu battery pack
Long life battery design
Fast battery charge (20 to 100%) in 1.6 h
High voltage (115 V) architecture
Increased lifting capacity: +40% over side (vs. PC30MR-5)
Short tail design: 1020 mm tail swing radius
